Gunnebo GrabiQ Swivel Eye Bolt BLP - M48x72mm 18,0T

Engineered for demanding heavy lifting

This Gunnebo GrabiQ swivel eye bolt delivers reliable performance for heavy-duty tasks of up to 18,000 kg. Manufactured from Class 10 steel with a 4:1 safety factor, it provides the security needed in demanding scenarios. The integrated ball bearing enables smooth load rotation during lifts, while the painted surface offers corrosion protection. Dimensioned at M48x72 mm, this component meets strict requirements for professional applications.

• Working Load Limit: 18,000 kg for straight lifts
• Class 10 certified steel construction ensures strength
• Safety factor 4:1 at 0° provides reliable protection
• Ball bearing design allows smooth load rotation
• Painted finish protects against environmental exposure
• M48x72mm dimensions for precise equipment compatibility

Built to handle critical tasks

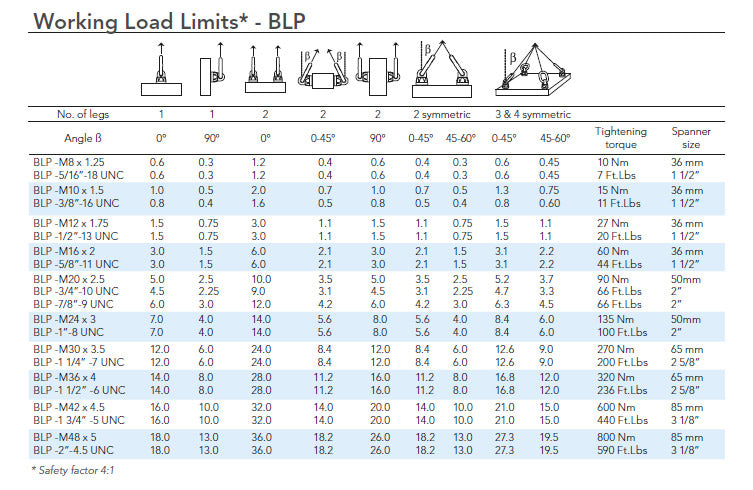

The combination of Class 10 steel and a 4:1 safety factor means this swivel eye bolt handles loads well beyond its rated capacity, reducing risk in critical projects. The ball bearing mechanism minimizes friction and wear during rotation, extending service life while maintaining smooth operation. Specified load limits for both straight lifts and 90° angles provide clear parameters for safe use across different configurations.

Explore our Eye bolts collection.
