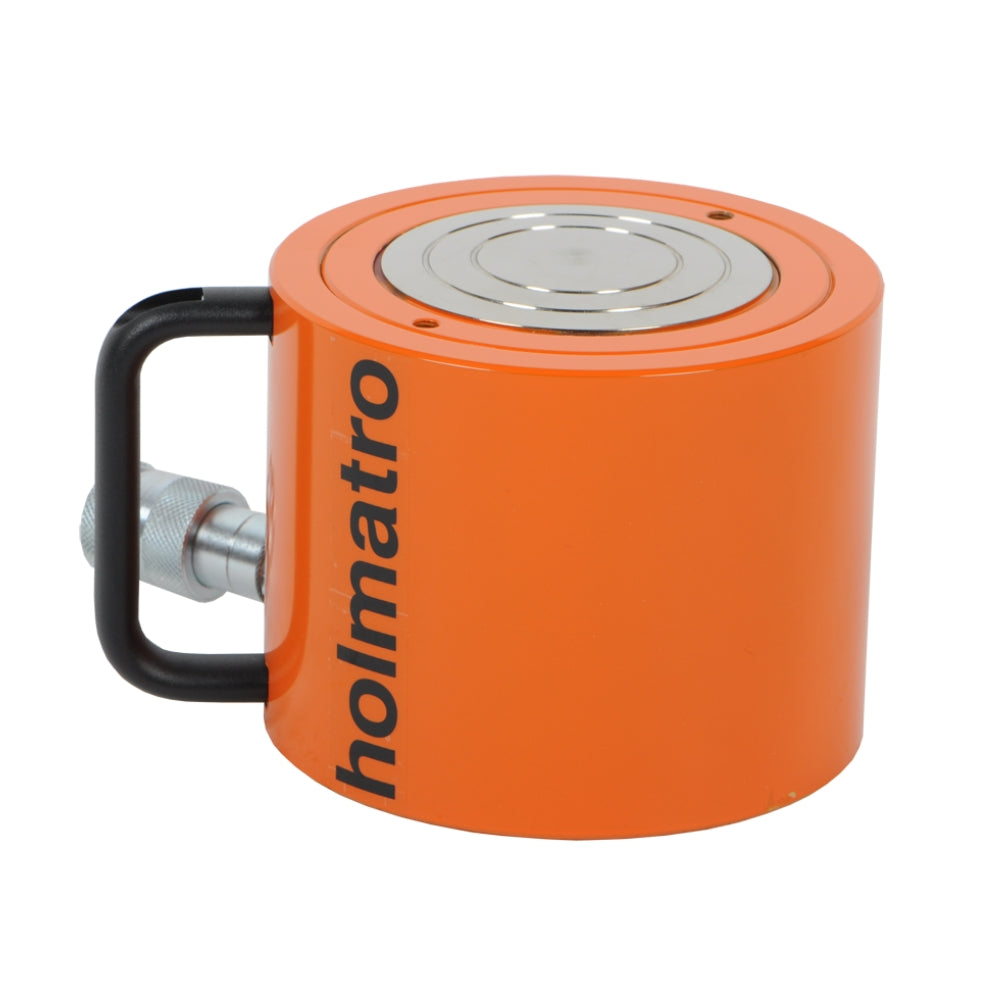

Holmatro Hydraulic Jack 100T - HSC 100 S 5

Compact power for heavy-duty tasks

The Holmatro HSC 100 S 5 combines a compact, flat design with a lifting capacity of 10,000 kg, making it suitable for demanding industrial scenarios where space is limited. Its robust steel construction ensures durability across various applications, while the fluted piston design eliminates the need for a separate saddle. The jack operates efficiently in any position, providing flexibility for challenging lifting tasks.

• Lifting capacity of 10,000 kg for heavy-duty projects
• Stroke length of 50 mm for precise positioning
• Operating pressure of 720 bar ensures reliable performance
• Spring return mechanism for efficient piston retraction automatically
• Dirt ring protection enhances lifespan in harsh environments
• Complies with B30.1 standard for quality assurance

Built for versatility and reliability

This hydraulic jack functions effectively in limited insertion spaces, allowing use where conventional equipment cannot fit. The built-in spring maintains constant pressure on the piston, which returns to its starting position when the pressure is lowered. Protection against piston failure is integrated into the design, while the dirt ring safeguards internal components against contamination, extending the operational lifespan in demanding work environments.
