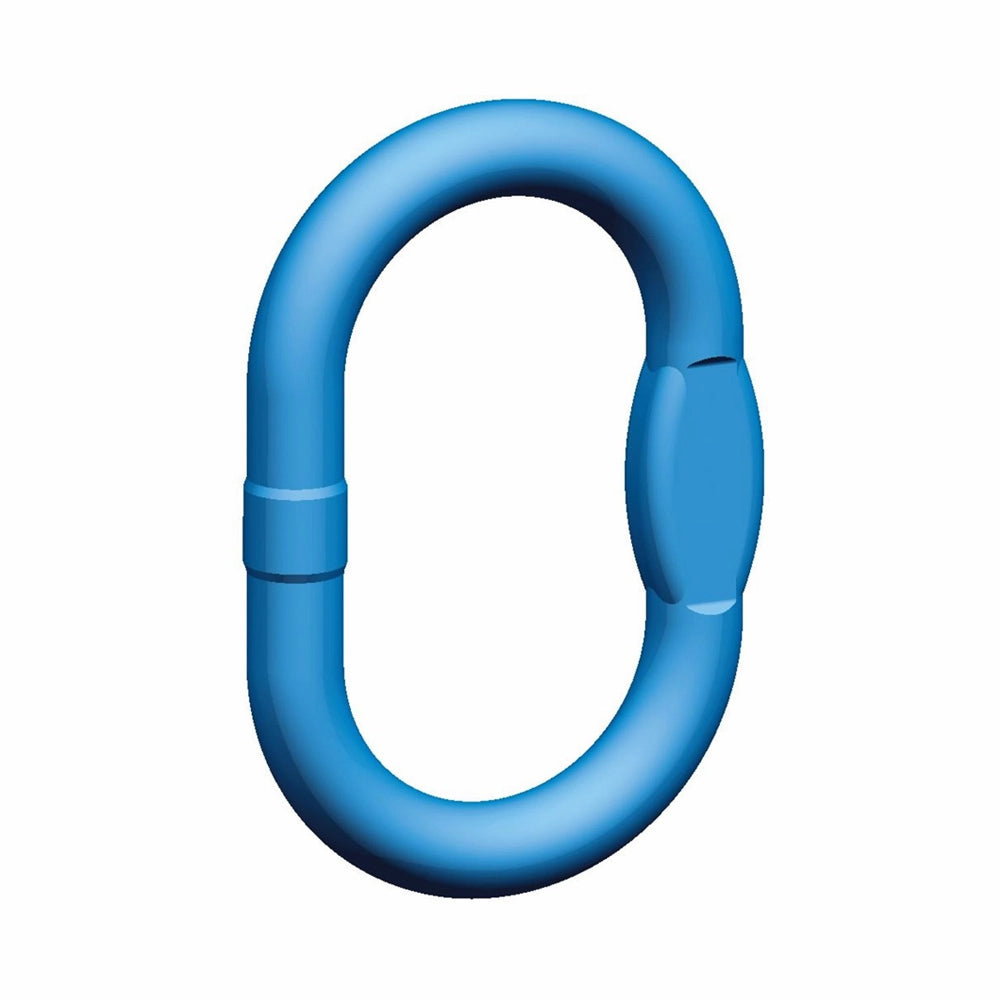

Pewag G12 Master Link AWP Grade 12

Standard Grade 12 made by pewag for use with chain slings with 1 or 2 legs in combination with pewag CWP coupling link. The flat sections of the Master Link opens the possiblity other parts than a coupling link. The master link can be used with DIN 15401 and DIN 15402 crane hooks.
View technical data below to find the correct dimensions.
The master link is manufactured according to EN 1677-4 with a capacity (WLL) according to grade 12, in addition, this master link is supplied with BG approval. The surface of the master link is painted with the known light blue pewag powder coating.

Product specifications

Product type Master Link
EN-Norm EN 1677 (WLL+50%)
Safety factor 4:1
Grade 12
Color Blue
Material High strengh steel
Inspection acc. to: Depending on the indv. Country. This product must be checked every 12 months by a qualified person.
Unit Pcs.
arrow_downwardTechnical Data

Add to order

Name
WLL (t)
Dimension (mm)
Weight (kg)
Stock status
Price

Pewag G12 Master Link AWP 13
# 1245000113
WLL (t) 2.36
Dimension (mm) 7
Weight (kg) 0.34
local_shipping Remote stock location

Login needed

Login needed

Pewag G12 Master Link AWP 16
# 1245000116
WLL (t) 3.5
Dimension (mm) 8/7
Weight (kg) 0.53
local_shipping Remote stock location

Login needed

Login needed

Pewag G12 Master Link AWP 18
# 1245000118
WLL (t) 5.3
Dimension (mm) 10/8
Weight (kg) 0.86
local_shipping Remote stock location

Login needed

Login needed

Pewag G12 Master Link AWP 22
# 1245000122
WLL (t) 8
Dimension (mm) 13/10
Weight (kg) 1.6
local_shipping Remote stock location

Login needed

Login needed

Pewag G12 Master Link AWP 27
# 1245000127
WLL (t) 12.5
Dimension (mm) 16/13
Weight (kg) 2.61
local_shipping Remote stock location

Login needed

Login needed

Pewag G12 Master Link AWP 33
# 1245000133
WLL (t) 17.5
Dimension (mm) 16
Weight (kg) 4.14
local_shipping Remote stock location

Login needed

Login needed
