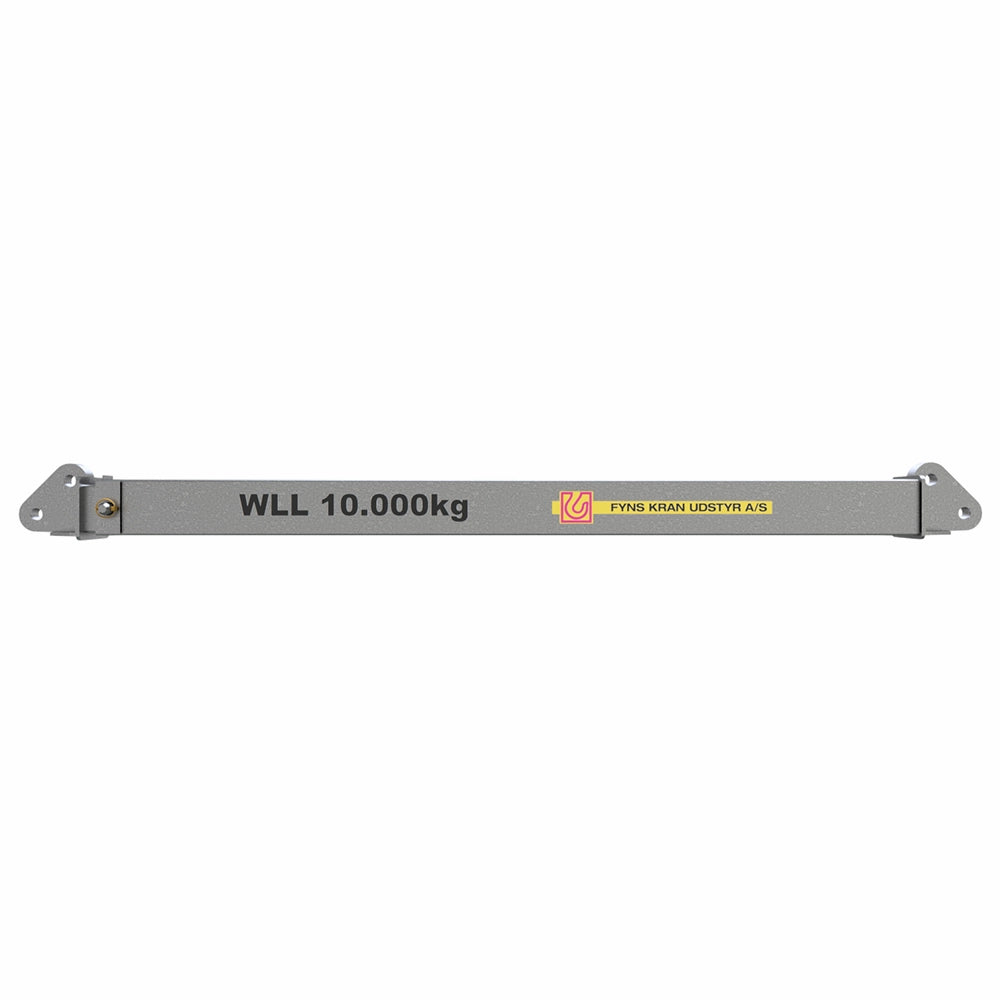

Rektangulær løfteåg, kapacitet 10.000 kg, mærket "FYNS KRAN UDSTYR A/S".

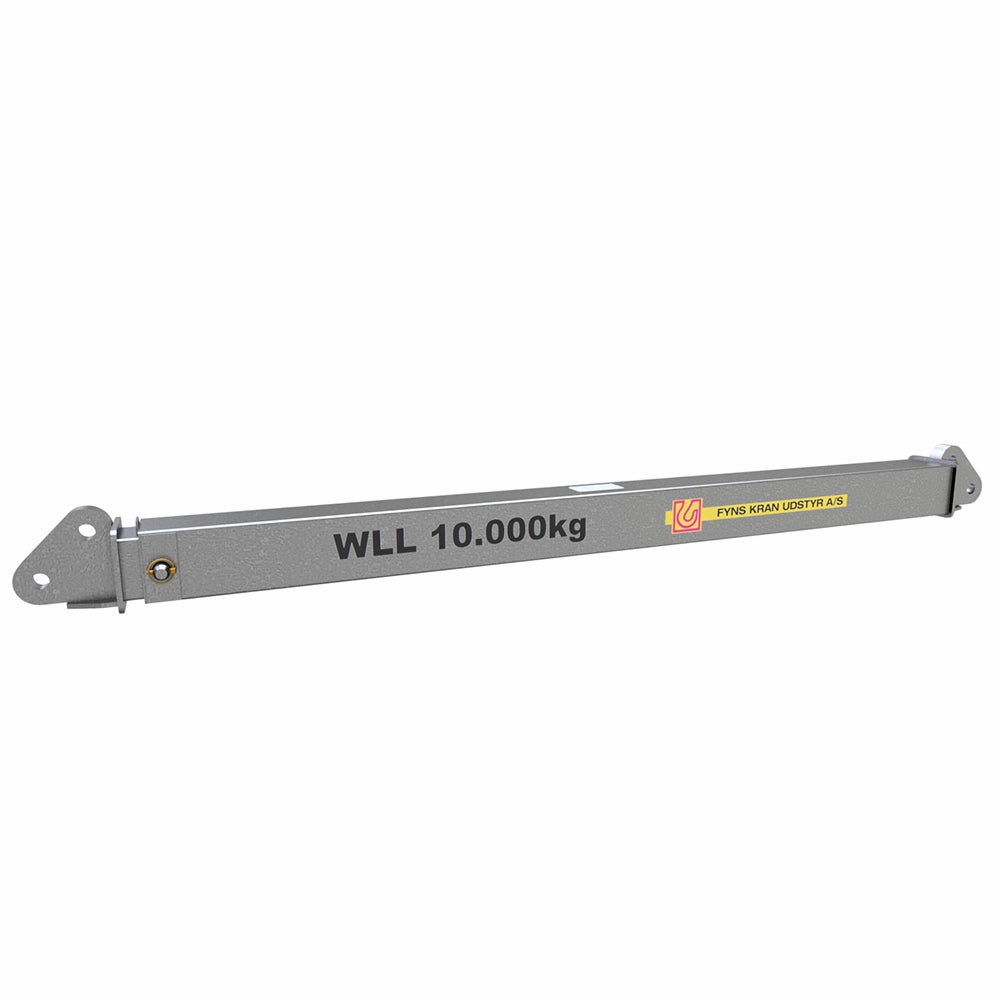

Rektangulær løfteåg med tekst "WLL 10.000 kg" og "FYNS KRAN UDSTYR A/S."

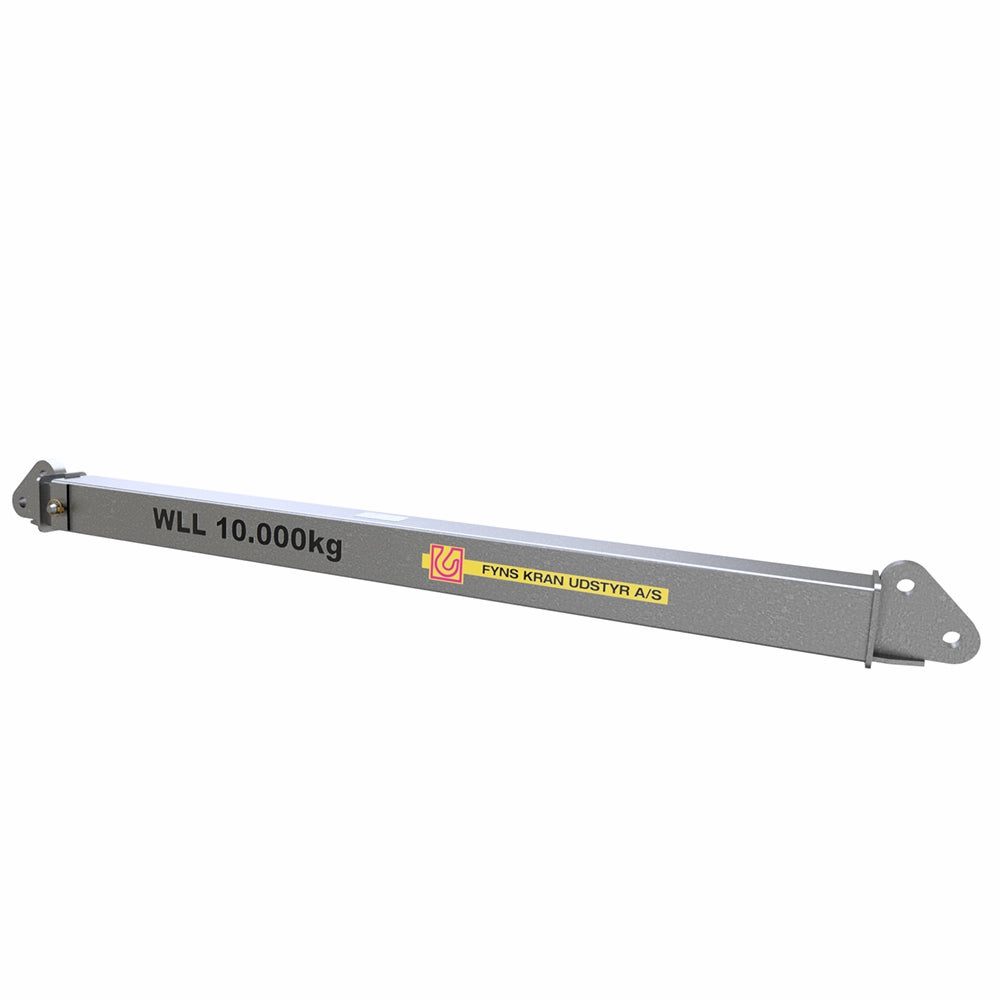

Rektangulær løfteåg, kapacitet 10.000 kg, mærket "FYNS KRAN UDSTYR A/S".

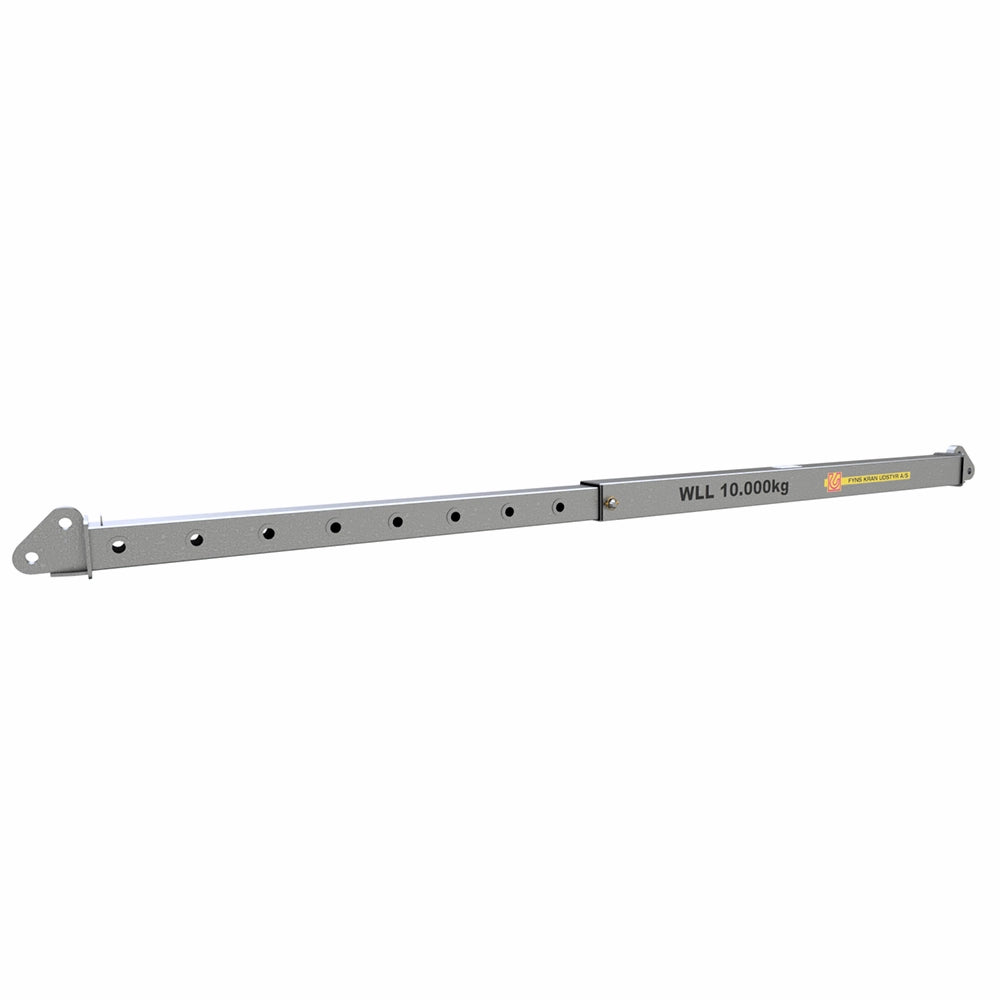

Rektangulær løfteåg med 10.000 kg kapacitet, blå kæder, gule kroge, "FYNS KRAN UDSTYR A/S".

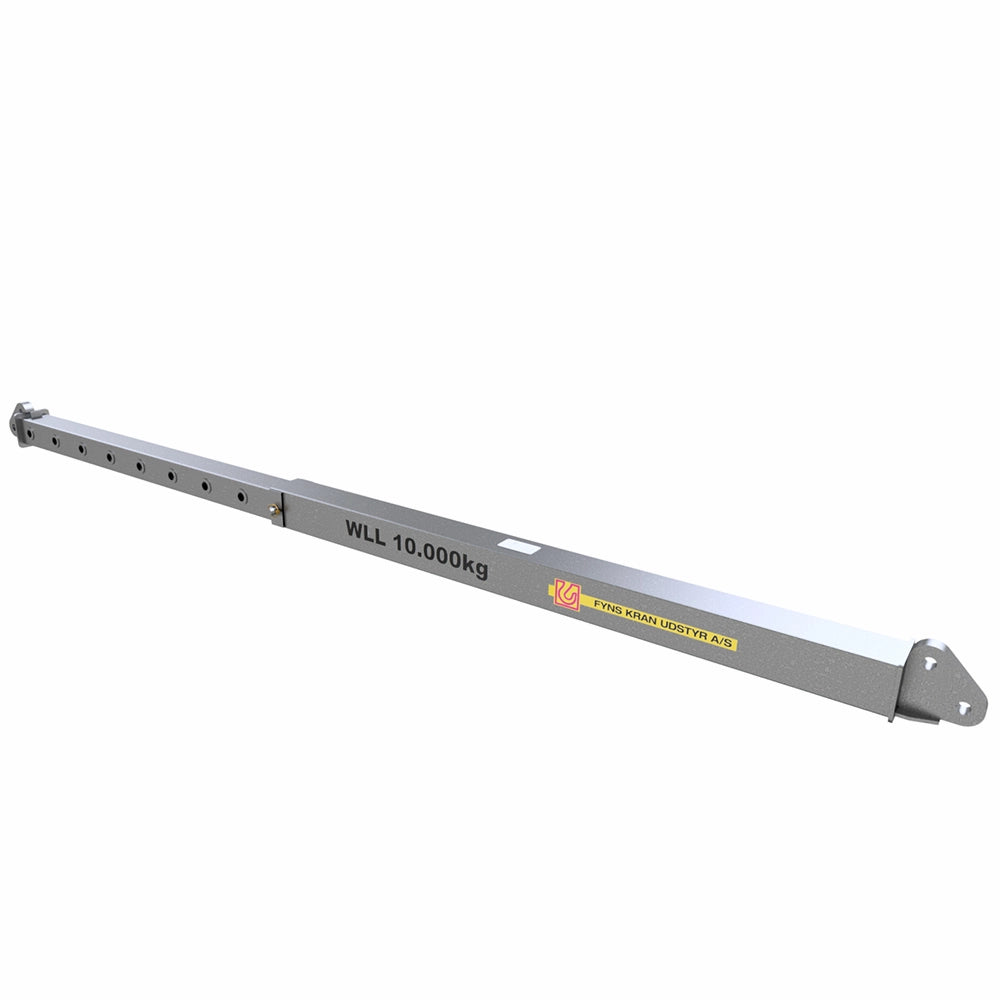

Rektangulær løfteåg med kapacitet 10.000 kg og mærket "FYNS KRAN UDSTYR A/S".

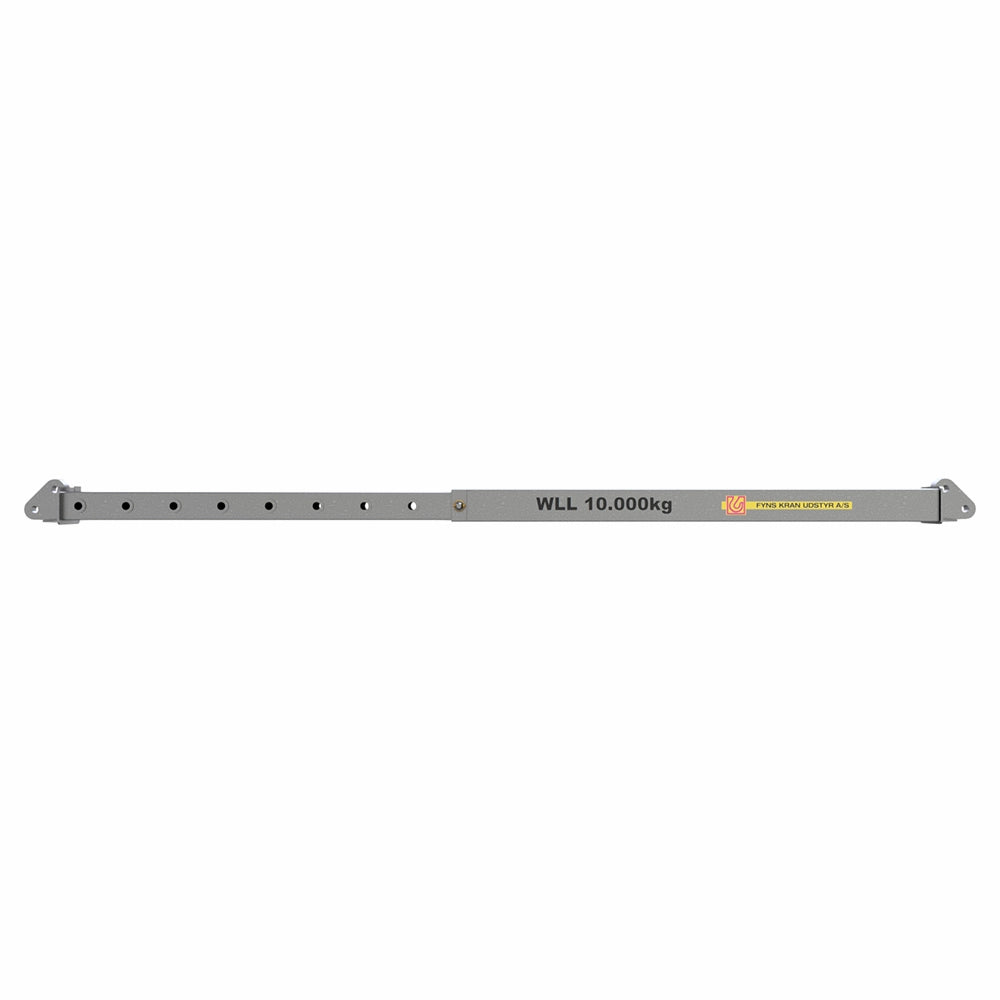

Rektangulær løfteåg med kapacitet 10.000 kg og mærke "FYNS KRAN UDSTYR A/S".

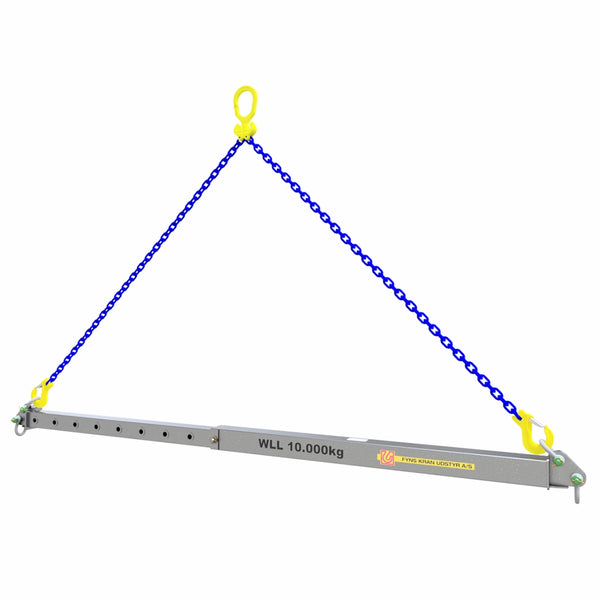

Løfteåg type S21 (G-10T/8)

SKU: 10007582
Quantity:
Add to inquiry
Already an user? Log in here
Download technical data

Product description

Adjustable capacity for heavy loads

Løfteåg type S21 delivers a WLL of 10,000 kg, with an adjustable width ranging from 4.6 to 8.0 meters. This galvanized beam features two fixed suspension points designed for chain or wire attachment, allowing you to mount shackles, hooks, or chain sets according to your requirements. The beam operates at a maximum top angle of 90 degrees, providing reliable performance for various lifting tasks.

  • WLL of 10,000 kg for demanding tasks
  • Adjustable width from 4.6 to 8.0 meters
  • Two fixed suspension points for attachment flexibility
  • Maximum top angle operation at 90 degrees

Danish quality with reliable delivery

Produced in Denmark, this løftegrej combines precise engineering with dependable manufacturing standards. The adjustable design accommodates different load widths, reducing the need for multiple beams across projects. Fixed delivery times ensure you can plan your equipment availability with confidence, while the galvanized surface treatment provides long-term durability in demanding environments.


To explore similar lifting gear, see the Adjustable Lifting Beams category.

Specifications

WLL in kg 10000
Length in mm 4600 - 8000
Surface treatment N/A
Standardnorm N/A
Alternative SKU 7935213108
