Løfteåg type S21 (G-6T/6,1)

SKU: 10007580
Quantity:
Add to inquiry
Already an user? Log in here
Download technical data

Product description

Adjustable design for various tasks

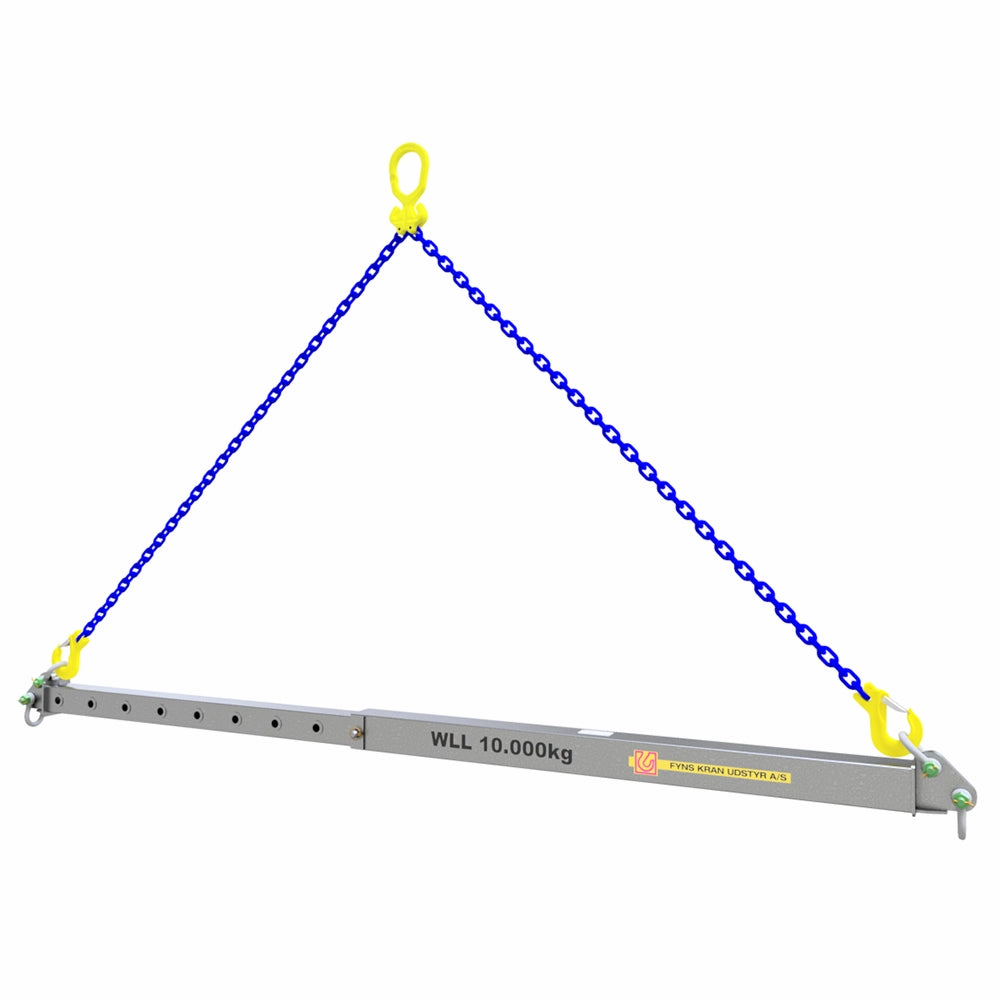

This type S21 lifting yoke features two fixed suspension points where you can mount shackles, hooks, or chain sets according to your requirements. The adjustable design includes multiple intervals through a pull-out function, allowing width adjustment between 3.5 and 6.1 meters. This galvanized yoke handles different lifting tasks with a WLL of 6,000 kg and maintains a maximum top angle of 90°.

  • WLL 6,000 kg for reliable load capacity
  • Adjustable width range from 3.5 to 6.1 meters
  • Two fixed suspension points for mounting options
  • Multiple adjustment intervals via pull-out function

Built for safety and compliance

The yoke is manufactured in Denmark with short and fixed delivery times, ensuring consistent quality. It complies with the Machinery Directive MD 2006/42/EC and features a 2:1 safety factor for added reliability. The galvanized surface treatment provides durability, while the precise engineering supports accurate load handling across the adjustable width range.


Explore the category Adjustable Lifting Beams for suitable lifting equipment.

Specifications

WLL in kg 6000
Length in mm 3500 - 6100
Standardnorm Produced in accordance with the Machinery Directive (MD 2006/42/EC)
Alternative SKU 7935213066
