Løfteåg type S30 (G-20T/12,5)

Engineered for demanding lifting requirements

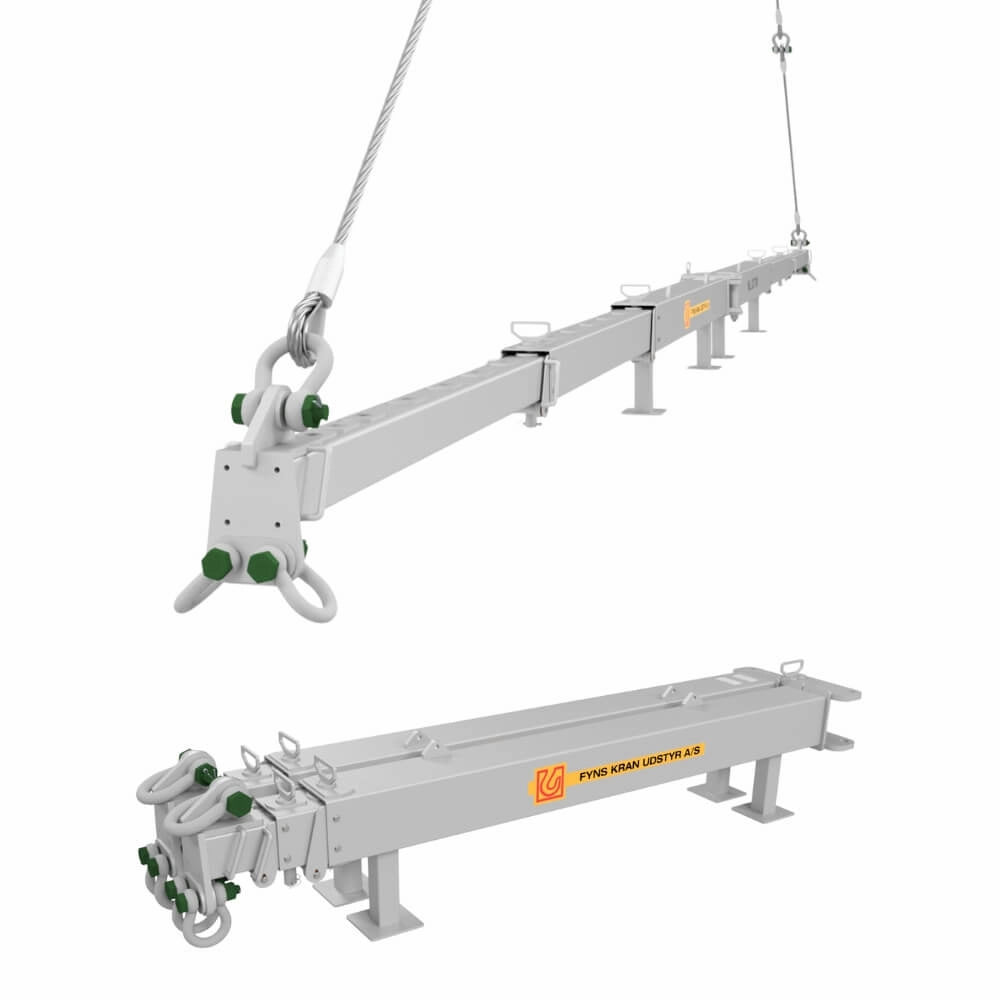

This galvanized lifting beam combines practical design improvements with robust capacity for various lifting tasks. Higher support legs enhance handling during setup and operation, while fixed rollers positioned under the extensions simplify length adjustments. The bolts for length adjustment are now conveniently located on top, improving accessibility. With an adjustable width ranging from 5,570 mm to 12,500 mm and a WLL of 20,000 kg, this løftegrej offers flexibility for different load dimensions. The collapsible design reduces transport length to 2,862 mm when folded, facilitating easier storage and movement.

• WLL of 20,000 kg for heavy loads
• Adjustable width from 5,570 mm to 12,500 mm
• Transport length folded: 2,862 mm for compact storage
• Two fixed suspension points for shackles and hooks
• Extension function enables customizable lifting intervals
• Manufactured in Denmark with reliable delivery times

Practical advantages for daily operations

The adjustable yoke with an extension function allows you to configure suspension intervals according to specific load requirements. Two fixed suspension points accommodate chain or wire mounting options, providing versatility in setup. The improved design, with top-mounted adjustment bolts and fixed rollers, reduces the time and effort needed for configuration changes. Galvanized surface treatment provides durability, while the collapsible spreader design offers practical advantages for transport and storage in limited spaces.

You can find similar lifting gear in the Adjustable Lifting Beams category.
