Ludwig Krog-system m. 4 krog 2,5T

Individual and group control

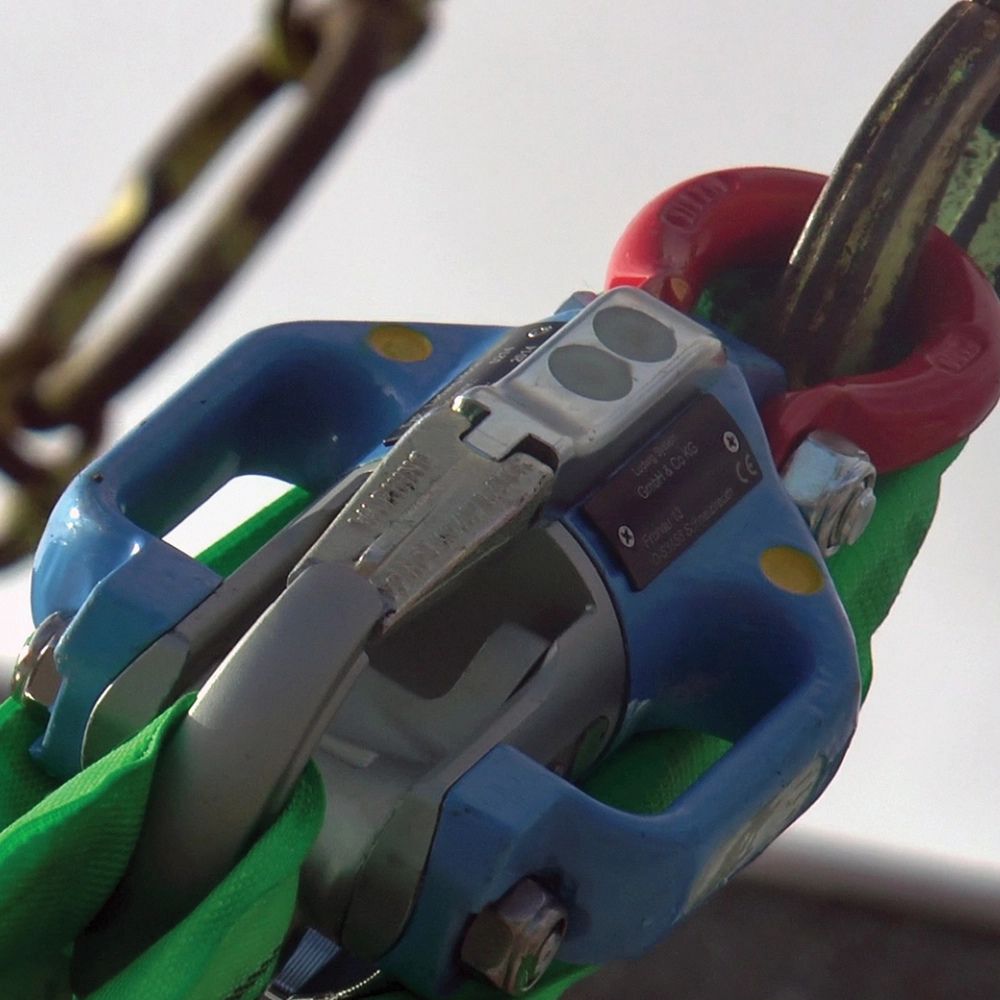

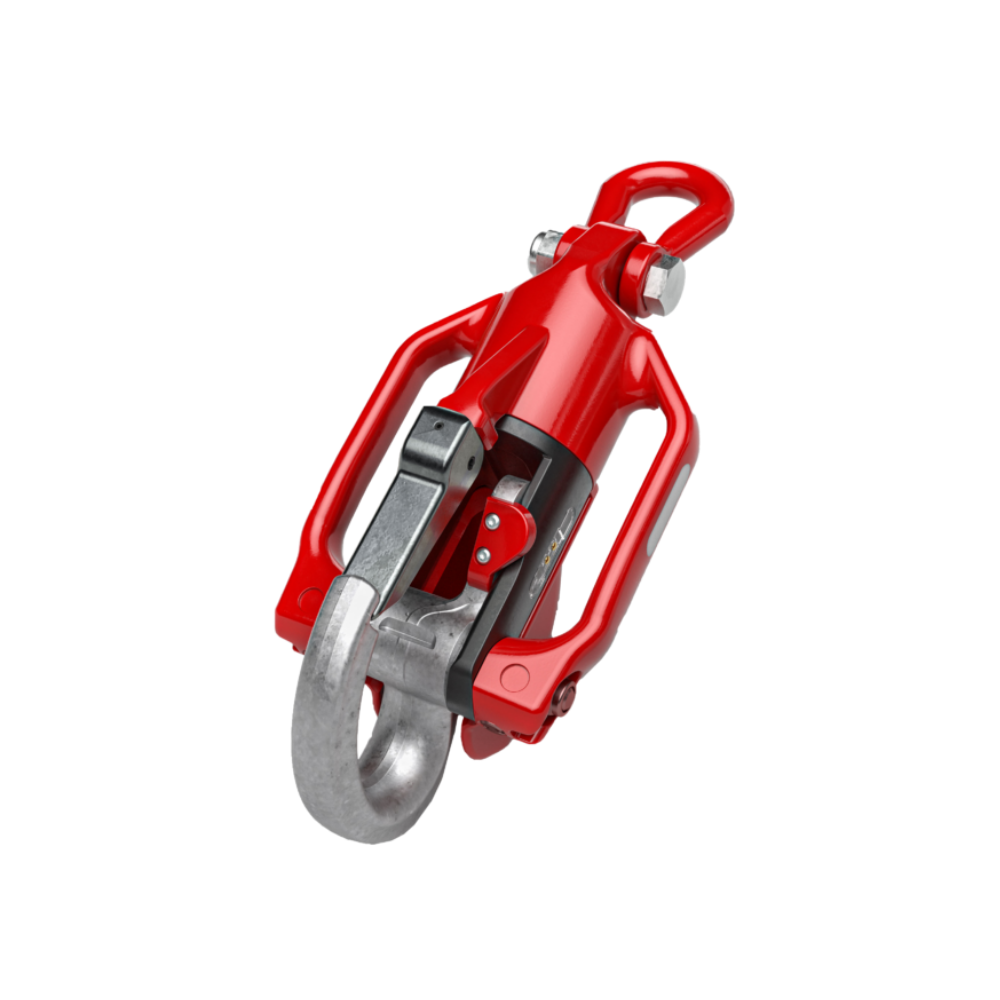

The Ludwig four-hook system consists of four remote-controlled Ludwig Hook 2.5 T units. Each hook has a WLL of 2.5 T, weighs 3.3 kg and measures 120 × 199 × 102 mm. The remote control has colour-coded buttons, operates at 868 MHz with a range of up to 50 m and runs at 6 V.

• Four hooks, each with a WLL of 2.5 T
• Colour-coded buttons for individual activation of the selected hook
• Group function for simultaneous release of all four hooks
• An opening safeguard prevents load release above a 25 kg residual load in direct tension

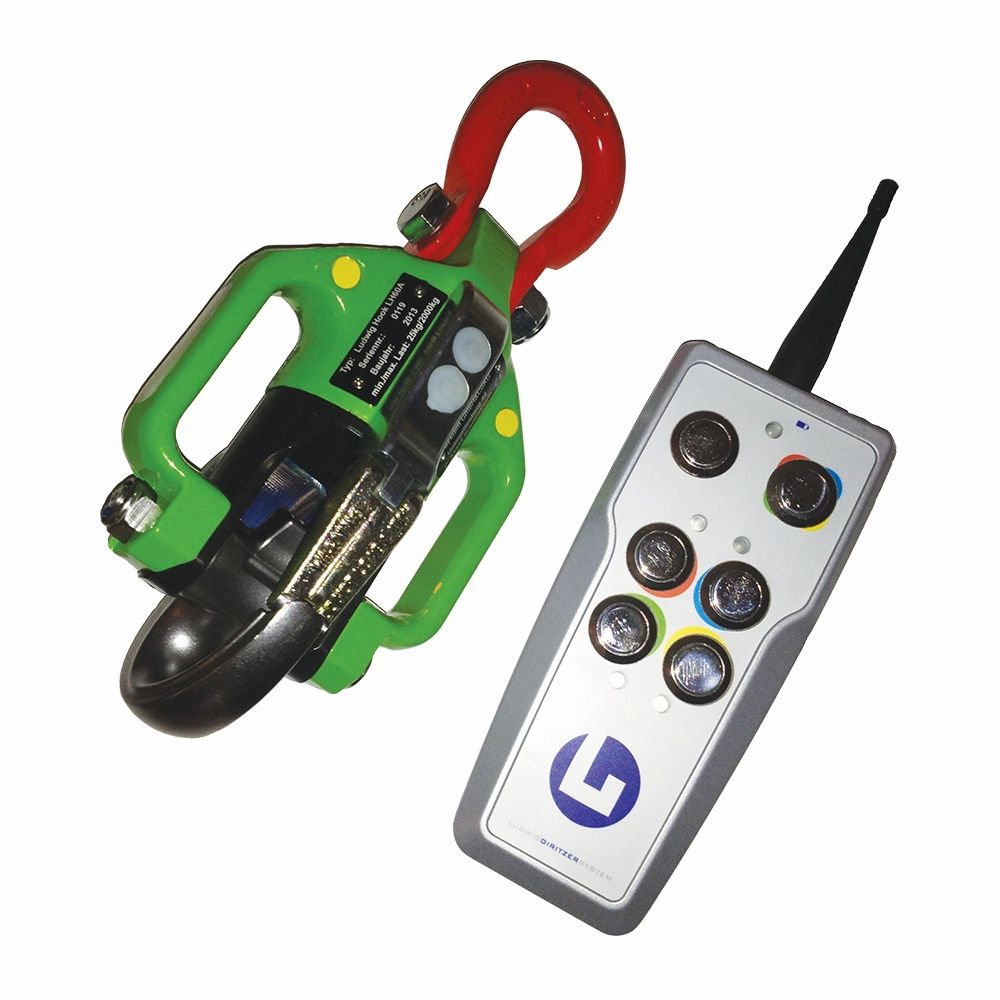

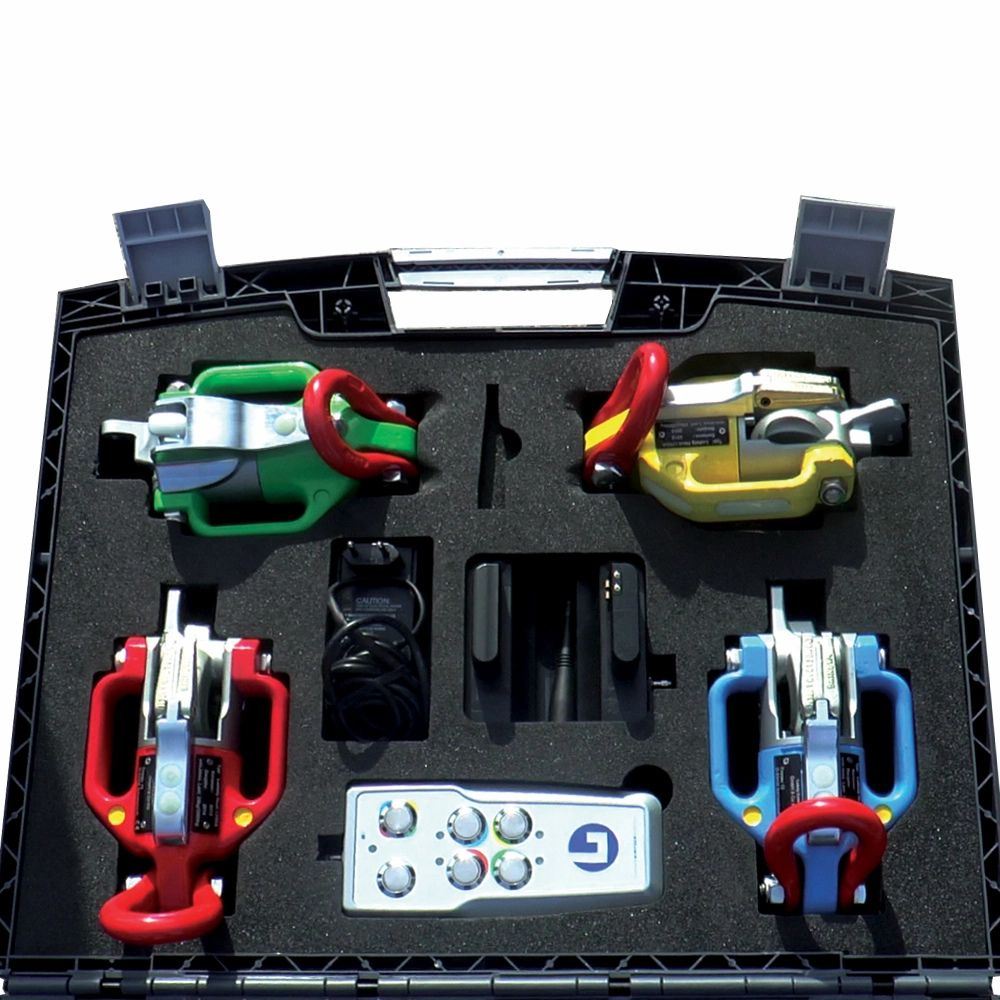

• Supplied with remote control, charging station, carrying strap and case

Functions for controlled lifting

The remote control allows one selected hook or all four hooks to be released after correct two-button activation. Release takes place after an approximately two-second delay. The three-stage safety concept includes two-button activation, an opening safeguard and power-failure protection. For multi-hook lifts, the permitted load must be determined from the operating manual's load tables and the actual suspension arrangement and angle.
