Pulley for Bottom Mounting Type BR125G

Precision mounting for demanding tasks

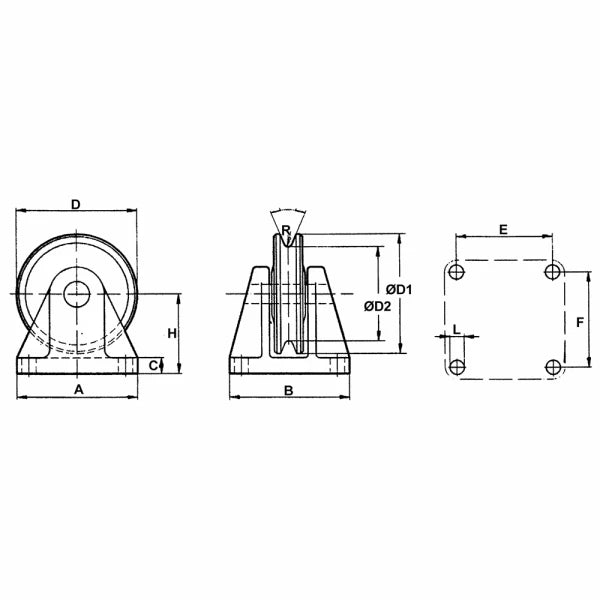

The Type BR125G pulley features a bottom mounting configuration with comprehensive dimensional specifications across multiple views. Front, side, and top perspectives reveal labeled measurements, including A, B, C, D, E, F, H, ØD1, ØD2, L, and R dimensions, providing the precise data needed to verify compatibility with your mounting surface and spatial constraints. The base plate design incorporates strategically positioned mounting holes, ensuring secure attachment in industrial environments. This pulley serves as an accessory component designed to integrate with existing systems where bottom-mount configurations are required.

• Three technical views showing all critical mounting dimensions
• Bottom mounting base with defined hole placement patterns
• Labeled dimensional reference points for accurate installation planning

Built for reliable performance

The detailed dimensional specifications enable accurate pre-installation planning, reducing fitting errors and minimizing downtime during setup. Access to technical data ensures you can verify compatibility with wire rope diameters and load requirements before deployment. The multiple-view technical drawing eliminates guesswork, allowing you to assess spatial clearances and mounting surface requirements with confidence. This level of precision supports efficient project execution in environments where equipment reliability and proper fit are non-negotiable, from workshop installations to field applications requiring durable hardware solutions.
