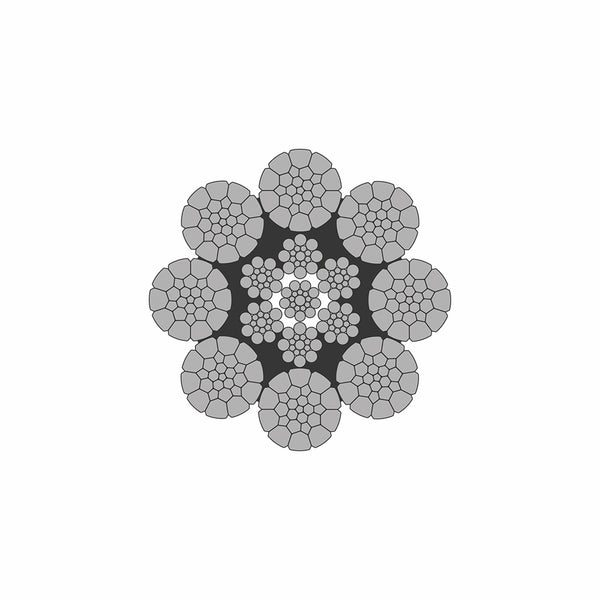

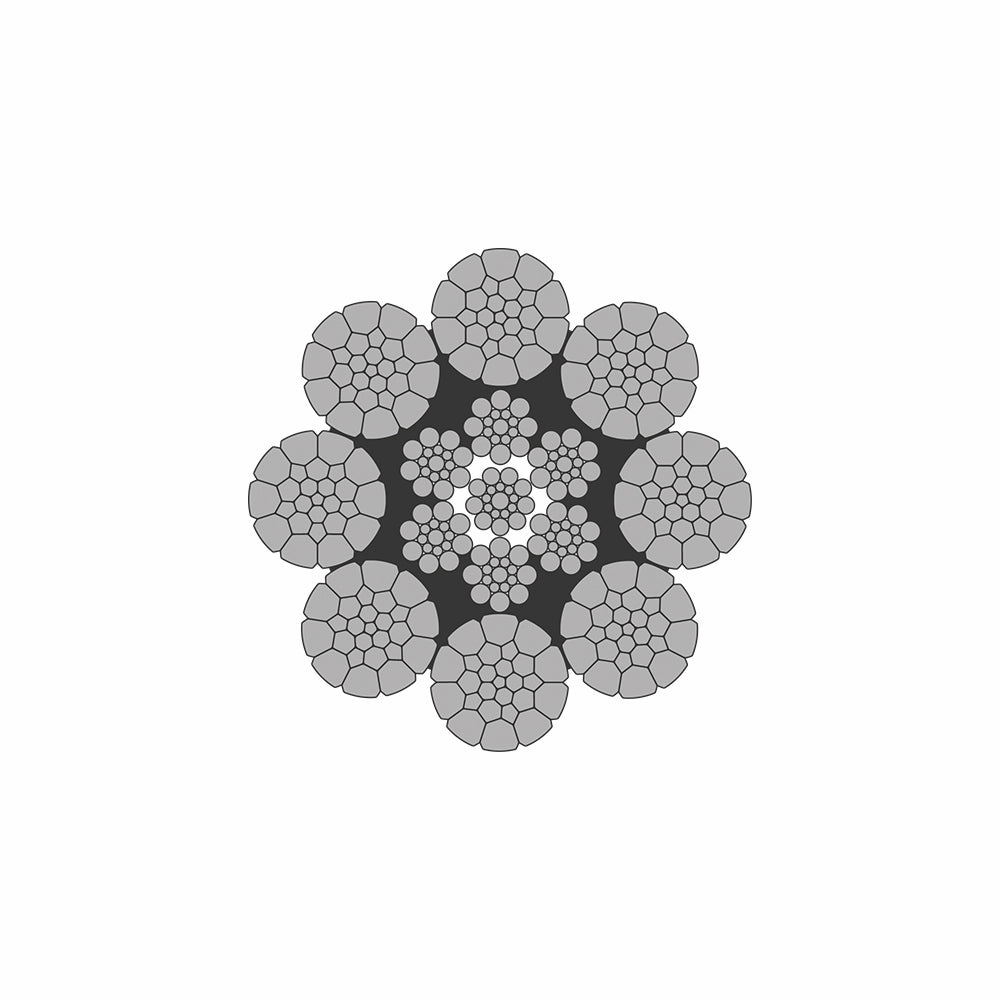

Tværsnit af reb med otte ydre og en central tråd, hver med mange mindre, snoede tråde.

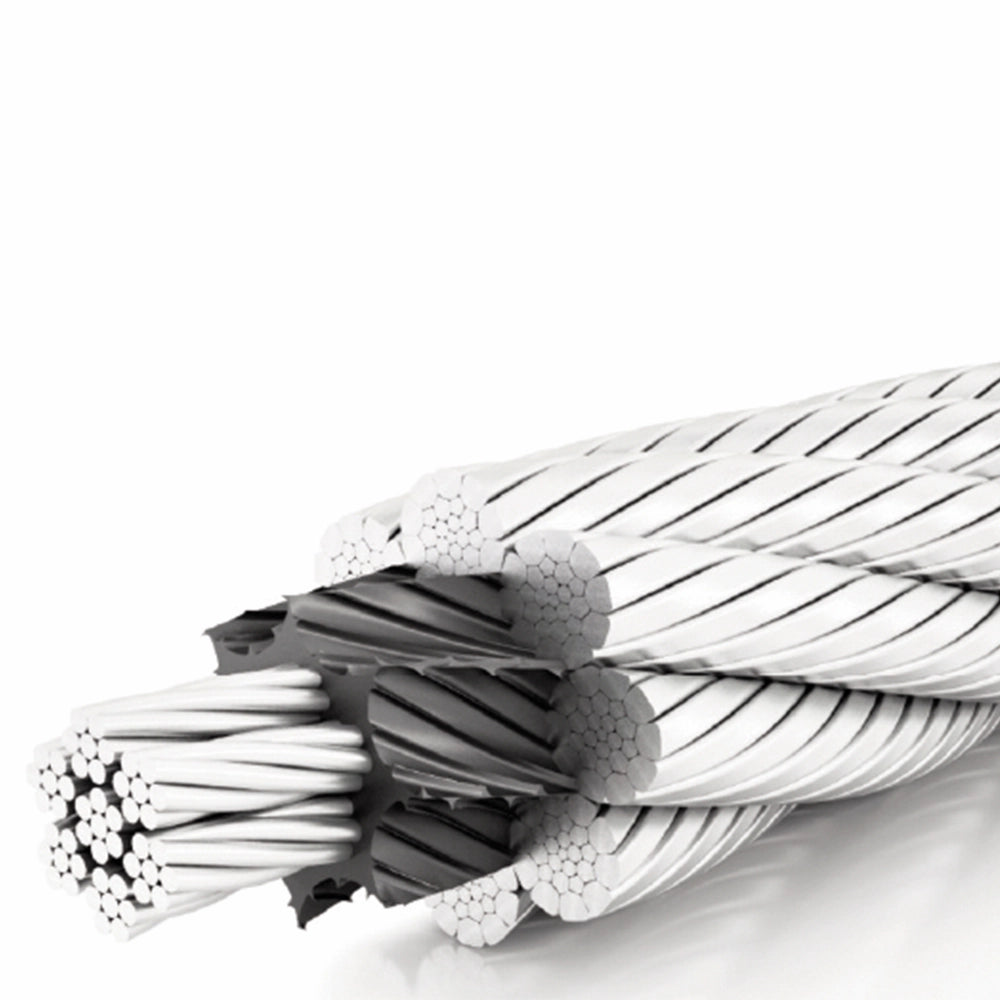

Reb med otte snoede ydre tråde og central kerne, hver tråd består af mindre tråde.

WDI-Python

Python Super 8C galv 1960N/mm2 RHOL - 48mm

SKU: 10001728
Quantity:
Add to inquiry
Already an user? Log in here
Made-to-order

Product description

Steel wire rope with a documented construction

The wire rope has construction 8xK31WS-EPIWRC and a diameter of 48 mm. The tensile grade is 1960 N/mm².

  • Construction 8xK31WS-EPIWRC
  • Diameter 48 mm
  • Lay RHOL
  • Minimum breaking load 204,000 kg
  • Material: Steel

Construction and surface

The construction 8xK31WS-EPIWRC states how the strands and wires are laid together. The rope has a steel core covered in plastic. The surface is galvanised. The stated minimum breaking load is the breaking load of the rope and not a WLL.

See the full range of steel wire ropes.

Specifications

MBL in kg 204000
Dimension 48mm
Tensile Strenght Wire 1960
Surface treatment N/A
Standardnorm N/A
Alternative SKU 2506001480
