Steel Wire Rope 19x7 IWRC 1960N/mm2 galv RHOL - 12mm
Product description
Steel wire rope with a documented construction
The wire rope has construction 19x7+IWRC and a diameter of 12 mm. The tensile grade is 1960 N/mm².
- Construction 19x7+IWRC
- Diameter 12 mm
- Lay RHOL
- Minimum breaking load 9,440 kg
- Material: Steel
Construction and surface

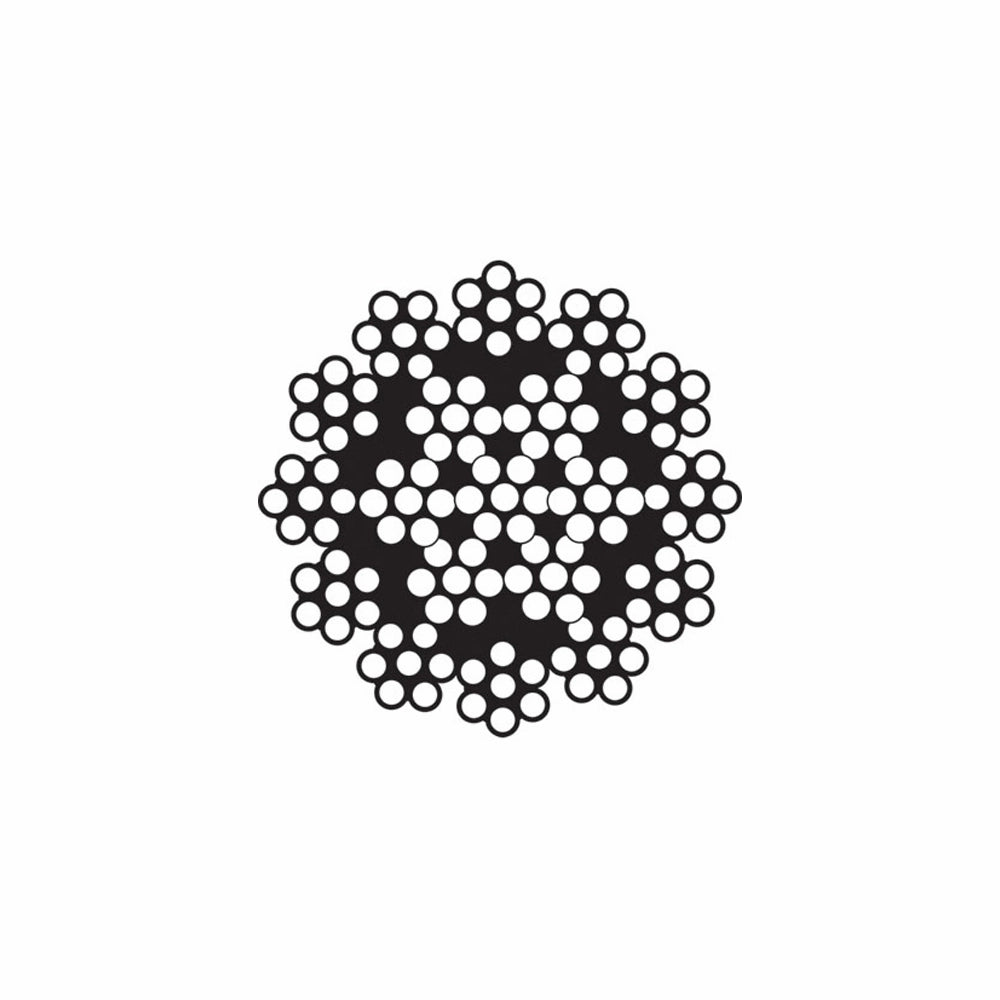

The construction 19x7+IWRC states how the strands and wires are laid together. The core type is IWRC. The surface is galvanised. The stated minimum breaking load is the breaking load of the rope and not a WLL.
See the full range of steel wire ropes.
Specifications
| MBL in kg | 9440 |
| Dimension | 12mm |
| Construction | 19x7+IWRC |
| Tensile Strenght Wire | 1960 |
| Surface treatment | N/A |
| Standardnorm | N/A |
| Alternative SKU | 2400501120 |
