Steel Wire Rope 6x7+WSC 1570 N/mm2 AISI316 dia. 3-5mm
Product description
Steel wire rope with a documented construction
The wire rope has construction 6x7+WSC and a diameter of 5 mm. The tensile grade is 1570 N/mm². It is marked to EN 12385.
- Construction 6x7+WSC
- Diameter 5 mm
- Lay RHOL
- Minimum breaking load 2,500 kg
Construction and surface

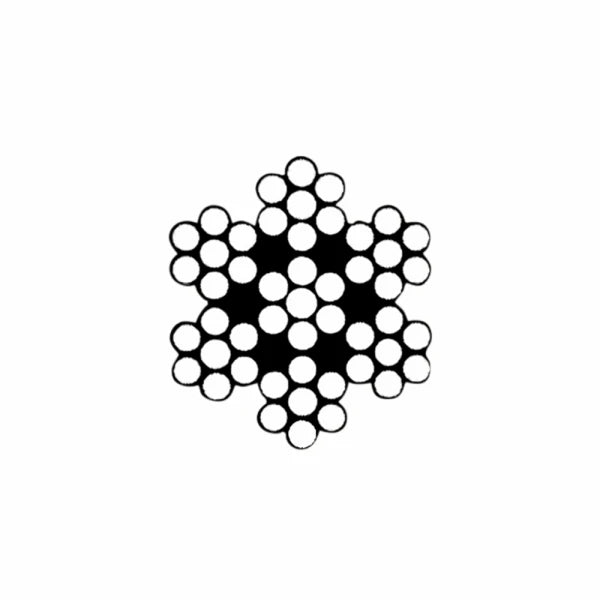

The construction 6x7+WSC states how the strands and wires are laid together. The core type is WSC. The stated minimum breaking load is the breaking load of the rope and not a WLL.
See the full range of steel wire ropes.
Specifications
| MBL in kg | 2500 |
| Dimension | 3-5 mm |
| Construction | 6x7+WSC |
| Tensile Strenght Wire | 1570 |
| Surface treatment | N/A |
| Standardnorm | EN 12385 |
| Alternative SKU | 2301001035 |
