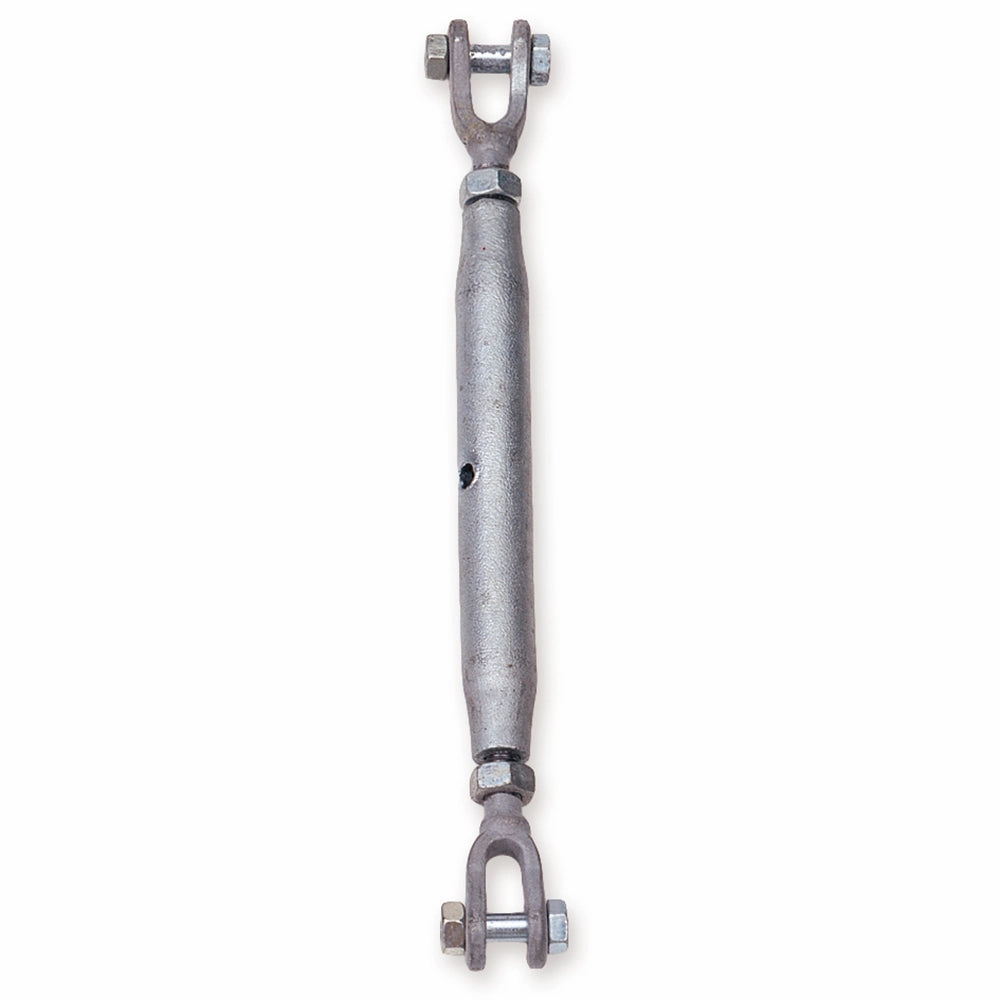

Turnbuckle Gunnebo Anja 401 with forks

Available in four versions. Hot-galvanized.
Available in larger dimensions. Safety factor 5:1.

Product specifications

Product type	Turnbuckle - Jaw/Jaw
Model	401
Standard (Norm)	BS 4429
Safety factor	5:1
Surface treatment	Hot-dip galvanized
Unit	Pcs.
Customs Code	73269098

User Manual

Technical Data

Add to order

Name

WLL (t)

Take Up (mm)

Stock status

Price

Rigging Screw galvanized 401 w/jaws - M6
# 2614001006

WLL (t) NOT for lifting

Take Up (mm) 80

Login needed

Rigging Screw galvanized 401 w/jaws - M8
# 2614001008

WLL (t) NOT for lifting

Take Up (mm) 85

Login needed

Rigging Screw galvanized 401 w/jaws - M10
# 2614001010

WLL (t) 0.5

Take Up (mm) 90

Login needed

Rigging Screw galvanized 401 w/jaws - M16
# 2614001016

WLL (t) 1.2

Take Up (mm) 185

Login needed

Rigging Screw galvanized 401 w/jaws - M20
# 2614001020

WLL (t) 1.5

Take Up (mm) 210

Login needed

Rigging Screw galvanized 401 w/jaws - M22
# 2614001022

WLL (t) 2.2

Take Up (mm) 230

Login needed

Rigging Screw galvanized 401 w/jaws - M24
# 2614001024

WLL (t) 3.2

Take Up (mm) 250

Login needed

Rigging Screw galvanized 401 w/jaws - 1 1/4.
# 2614001032

WLL (t) 4.8

Take Up (mm) 290

Login needed

Rigging Screw galvanized 401 w/jaws - 1 1/2.
# 2614001038

WLL (t) 6

Take Up (mm) 300

Login needed

Rigging Screw galvanized 401 w/jaws - 1 3/4.
# 2614001044

WLL (t) 8.5

Take Up (mm) 290

Login needed

Rigging Screw galvanized 401 w/jaws - 2.
# 2614001052

WLL (t) 11

Take Up (mm) 290

Login needed

Rigging Screw galvaniz w/jaws - M12 Cert Cert
# 2614090012

WLL (t) 0.7

Take Up (mm) 155

Login needed
