Straightpoint Dynamometer Radiolink Plus - 35.0T With Display

Precision measurement for demanding tasks

The Straightpoint Dynamometer Radiolink Plus delivers a working load limit of 35,000 kg with DNV-GL approval and ASME B30.26 compliance, ensuring that operations meet the required safety standards. The 2.4 GHz long-range version provides wireless monitoring up to 700 m, allowing personnel to track measurements across extensive work areas. With NEMA 6/IP67 protection and a configurable refresh rate of up to 200 Hz, this dynamometer maintains reliable performance in challenging conditions ranging from -10°C to +50°C.

• 35,000 kg working load limit for heavy-duty applications
• 2:1 safety factor ensures secure operation under load
• DNV-GL approved for international safety compliance
• ASME B30.26 certification meets industry standards
• 700 m wireless range for large-scale site monitoring
• IP67 protection withstands dust and water exposure

Built for critical load verification

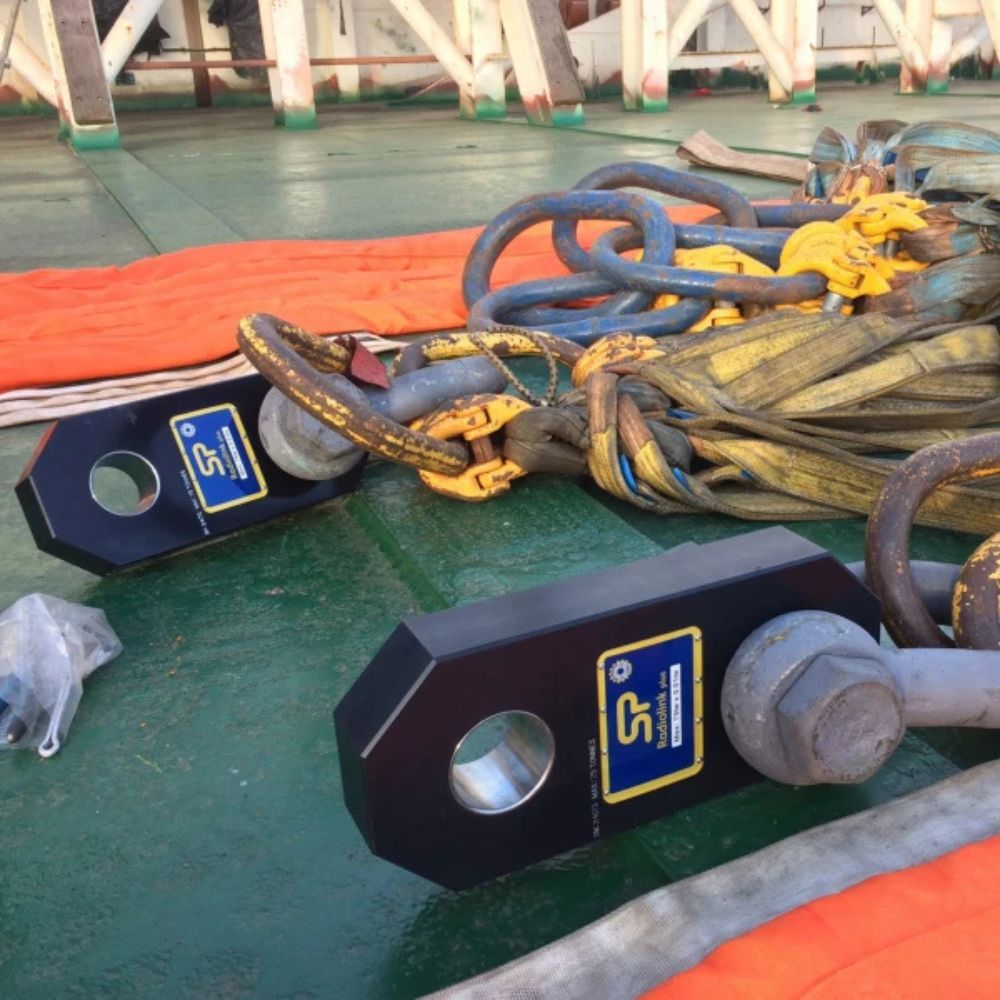

Accurate weight measurement for cranes and heavy equipment ensures structural safety during load testing scenarios. The 700 m wireless range allows monitoring across large sites without repositioning equipment, while the 2:1 safety factor reduces risk during critical tasks. Compatible with standard ropes from Crosby, Van Beest, and GN Rope, the dynamometer compensates for rope torque when loaded and integrates with SW-MWLC systems for real-time data logging and wireless documentation.
