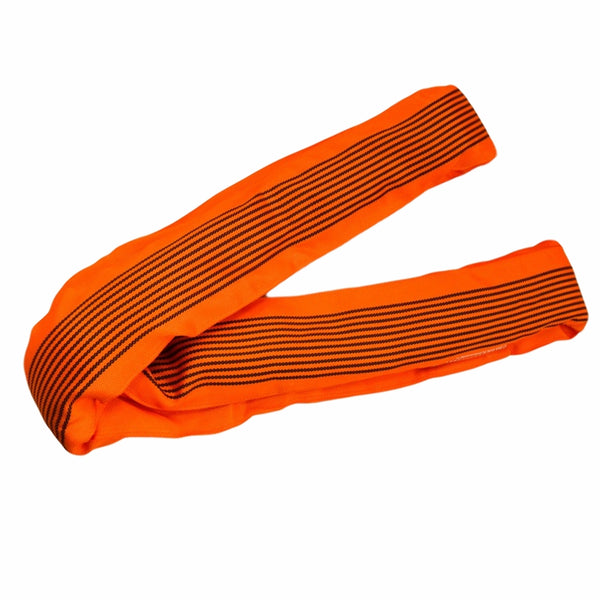

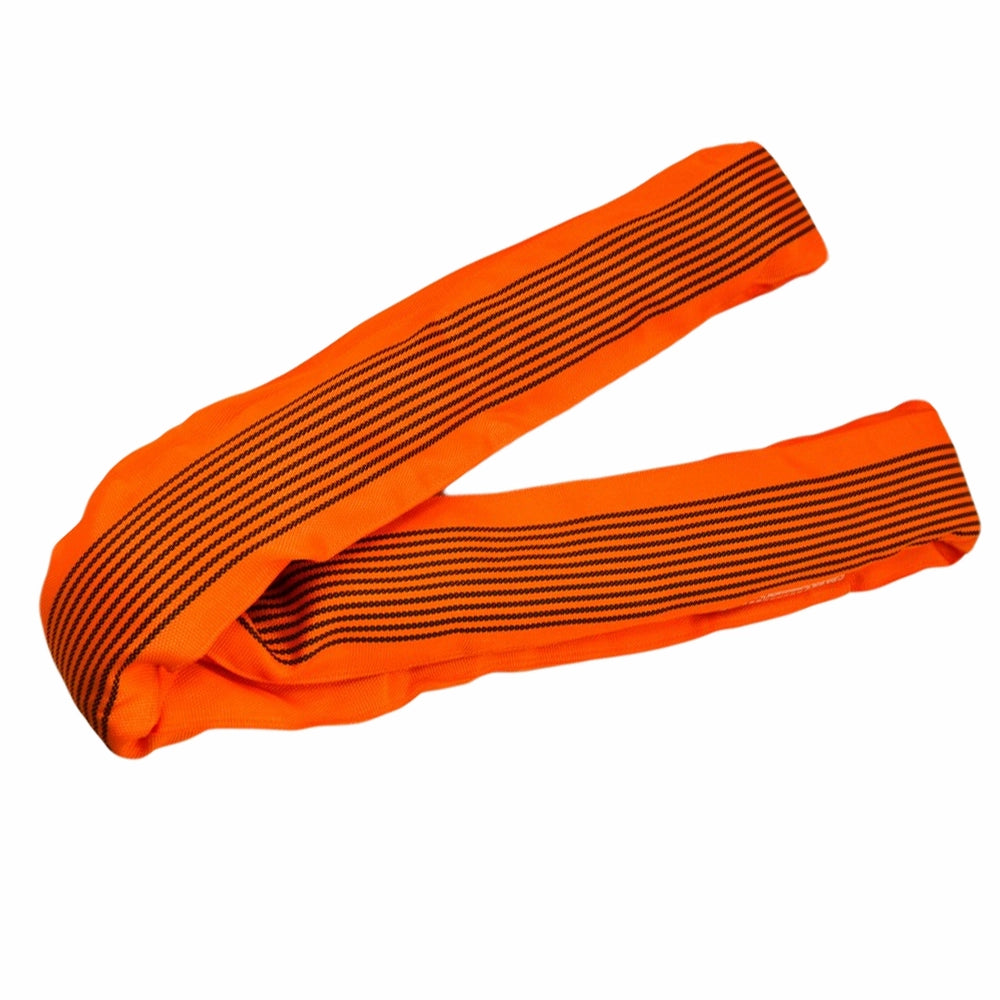

WDL Round Sling Seamless WLL 10T orange - 10/5m

Seamless round sling with a clear colour code

The WDL round sling is a seamless round sling with a WLL of 10,000 kg in a straight lift. The orange colour follows the colour code for round slings with WLL 10 t, so the capacity can be read directly on the sling. This variant has a circumference of 10 m and a length of 5 m and is marked to EN 1492.

• WLL 10,000 kg in a straight lift
• Circumference 10 m, length 5 m
• Material: polyester
• Marked to EN 1492
• Operating temperature from -40 °C to +100 °C

Capacity depends on the hitch

The WLL applies to a straight lift. In a choked lift the WLL is 8,000 kg, and in a basket hitch with vertical legs it is 20,000 kg. The full WLL table, including angled basket hitches, is in the round sling user manual. The sling has a safety factor of 7:1. It can be used for various lifting tasks within the stated temperature range. Inspect it for damage before and after each lift, and remove it from use if damage is visible.
