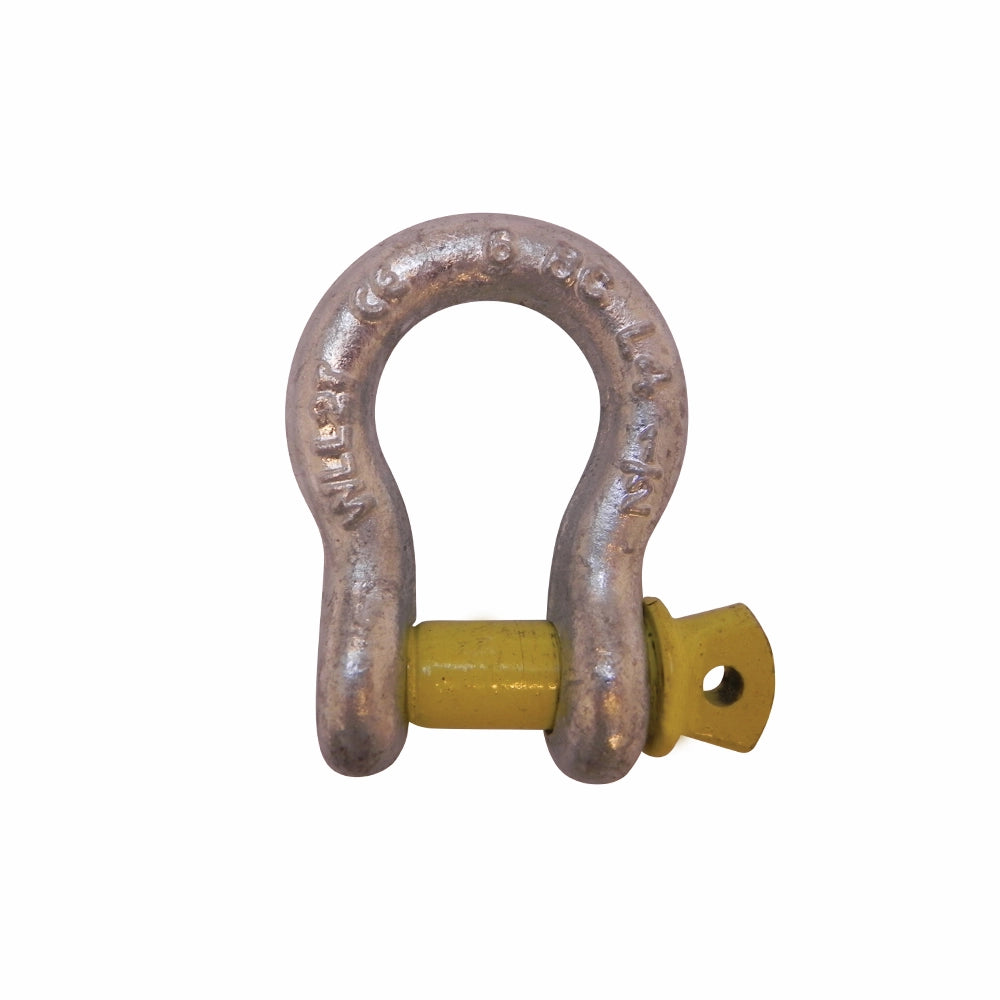

WDL Shackle Gr. 2 - 1.50T
Product description
Enhanced reliability for demanding tasks
The WDL Shackle Gr. 2 features a 6:1 safety factor, providing substantial load capacity beyond its 1.5T Working Load Limit. This Class 2 shackle meets EN 13889 standards and U. S. Federal Specification RR-271D, ensuring certified performance. The hot-dip galvanized steel construction delivers corrosion resistance for an extended service life across various scenarios.
- Safety factor 6:1 for enhanced load capacity margin
- Working Load Limit of 1.5T for safe handling
- Type IV A Grade, Class 2 classification standard
- Pin diameter 13 mm with 19 mm gap opening
- Hot-dip galvanized steel for corrosion protection
Built for precision and durability
Compliance with both EN 13889 and RR-271D specifications ensures that this shackle meets rigorous safety requirements for professional applications. The hot-dip galvanization process creates a protective zinc coating that withstands harsh environments, reducing maintenance needs. The 6:1 safety factor means that the shackle can handle loads significantly beyond the rated 1.5T capacity, providing confidence during critical lifting tasks.
To explore related products, browse our Shackles collection.
Specifications
| WLL in kg | 1500 |
| Grade | 6 |
| Jaw size in mm | 19 |
| Model | G-3161 |
| Approved for lifting | Ja / Yes |
| Surface treatment | N/A |
| Pin size in mm | 13 |
| Standardnorm | EN 13889 |
| Alternative SKU | 1509201500 |
