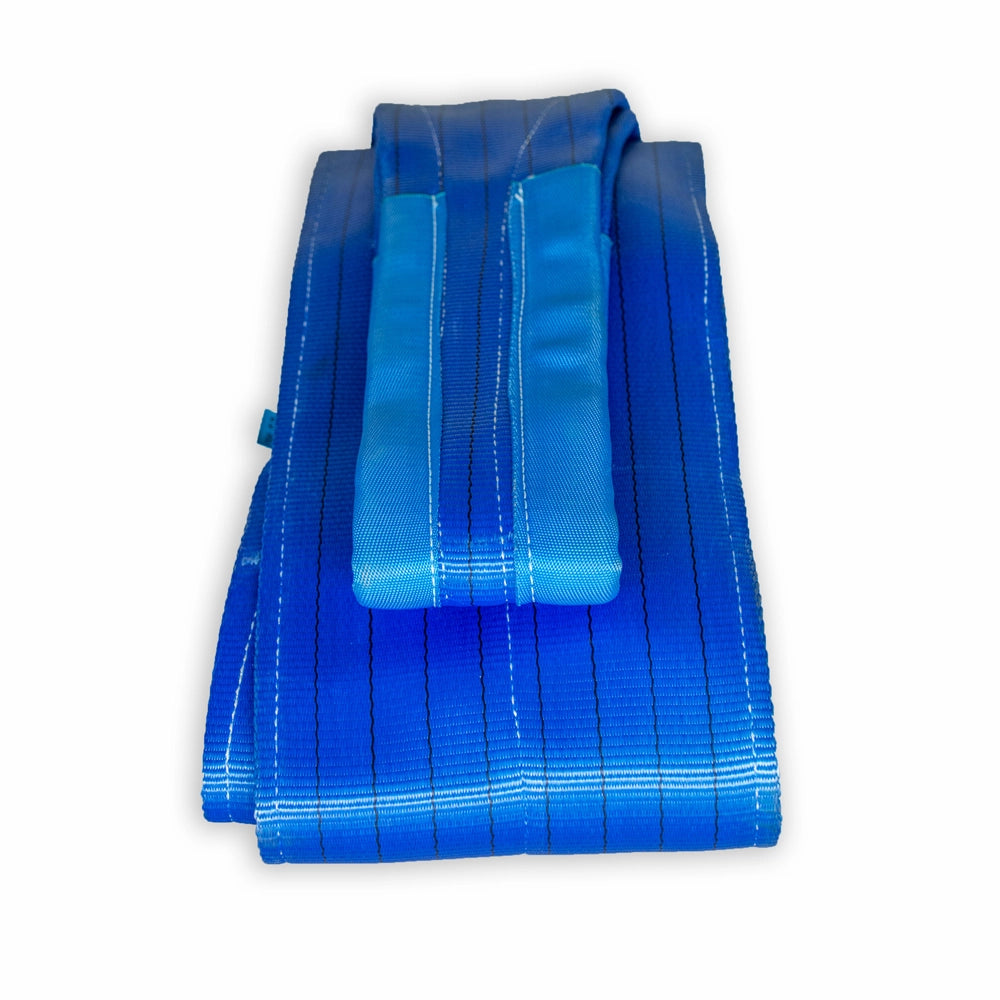

UTX / WDL Webbing Sling WLL 8T blue - 240 mm/2m

WDL webbing sling for various lifting tasks

The WDL webbing sling has a WLL of 8,000 kg in a straight lift. This variant is 240 mm wide and 2 m long. The blue colour follows the colour code for webbing slings with WLL 8 t, so the capacity can be read directly on the sling. The sling is marked to EN 1492-1.

• WLL 8,000 kg in a straight lift
• Width 240 mm, length 2 m
• Material: Polyester
• Safety factor 7:1
• Operating temperature from -40 °C to +100 °C

Choose by capacity, width and length

The WLL applies to a straight lift. In a choked lift the WLL is 6,400 kg, and in a basket hitch with parallel legs 16,000 kg. With angled legs the value decreases with the angle, and the full load table is in the user manual for round slings and webbing slings. Sharp edges reduce the breaking strength of the sling, so use edge protection where they cannot be avoided. The webbing sling can be used for various lifting tasks within the stated temperature range. Check the sling and its label for damage before use, and remove it from use if damage is visible.
