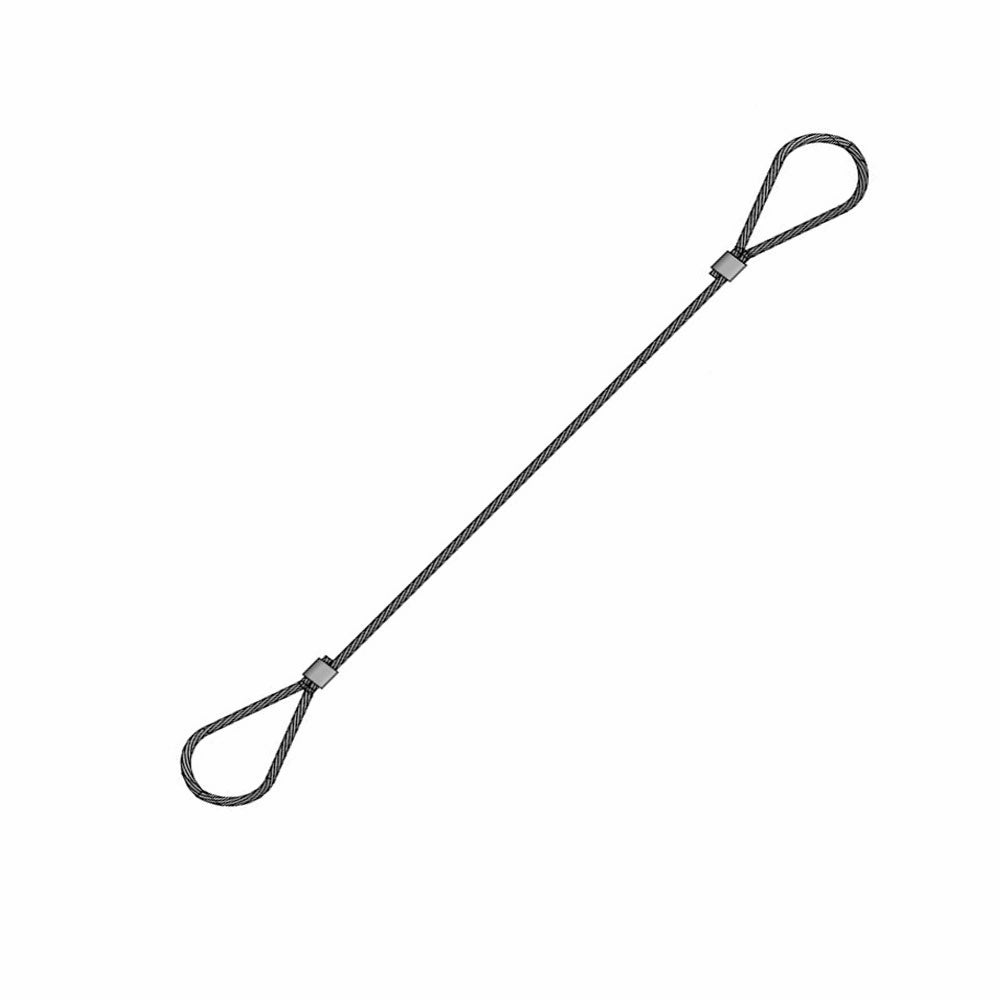

Wirestrop med to øjer sikret af krympeanordning. Længde angivet med "L".
Wirestrop med dobbelte øjer, sikret med krympeanordning. Længdeindikation "L" vises i midten.

Wire Rope Sling w/2 eyes FIHJ/T-clamp - 14mm

SKU: 10002578
LGD:1
Quantity:
Add to inquiry
Already an user? Log in here
In remote storage

Product description

Wire rope sling for lifting tasks

Wire rope sling in 6x36+FC steel wire with fibre core and pressed eyes, 14 mm diameter and WLL of 2300 kg.

  • 6x36+FC steel wire with fibre core for stable cross section under load
  • 14 mm diameter with WLL of 2300 kg at a safety factor of 5:1
  • Wire rope sling with pressed eyes ready for use in lifting

Technical properties and use

The wire rope sling is manufactured from steel wire in 6x36+FC construction with fibre core which provides an even distribution of the wires and a stable cross section under load. The pressed eyes ensure a secure and controlled connection to approved components and accessories. The WLL of 2300 kg at 14 mm diameter makes the wire rope sling suitable for many types of lifting tasks within the applicable standards and a safety factor of 5:1.

See the full range of wire rope slings.

Specifications

WLL in kg 2300
Dimension 14mm
Construction 6x36+FC
Tensile Strenght Wire 1960
Surface treatment N/A
Standardnorm EN 13414
Alternative SKU 2908600014
